GEMORO XRF PRO
Gold & Precious Metal Analyzer

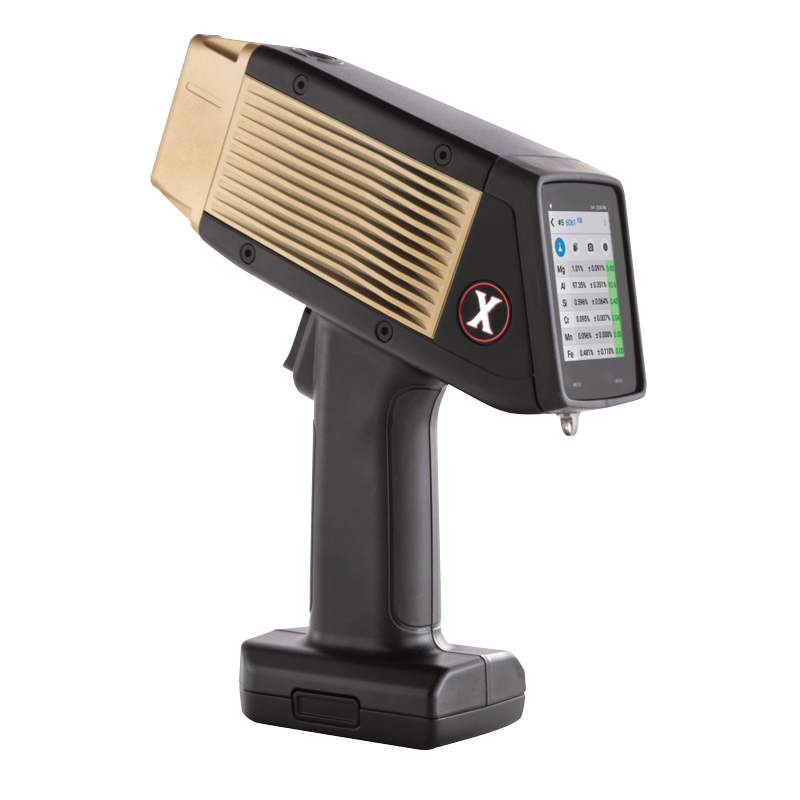

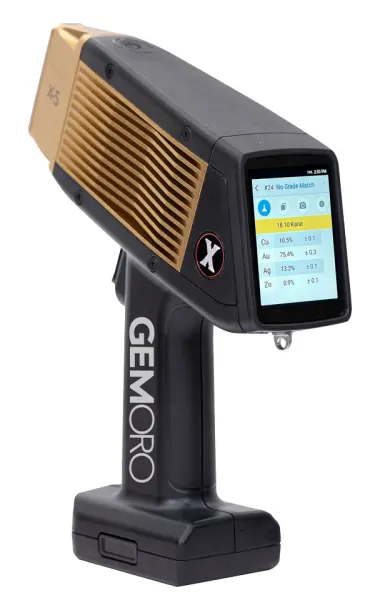

The GEMORO XRF PRO Analyzer is our premium handheld, portable Energy Dispersive XRF Spectrometer model that uses an advanced SDD detector. The sleek new GEMORO XRF PRO Analyzer is our lightest, smallest, fastest, high-precision XRF analyzer under 3 lbs. This is especially beneficial when you’re using it all day long.
It has all the features of the original GEMORO XRF Analyzer and more. It’s designed for jewelers, pawnshops, appraisers, precious metals buyers, and manufacturers that demand the best. With gold over $3,000 per ozt, this is the time when you’ll want to benefit from the efficient, super-fast, non-destructive technology that’s used in the GEMORO XRF PRO. Manufactured in the USA.
X-ray Fluorescence or XRF is a non-destructive, analytical method used to determine elemental concentrations of various materials on the surface of what is being analyzed. It’s important to recognize that not all XRF analyzers have the same capabilities.

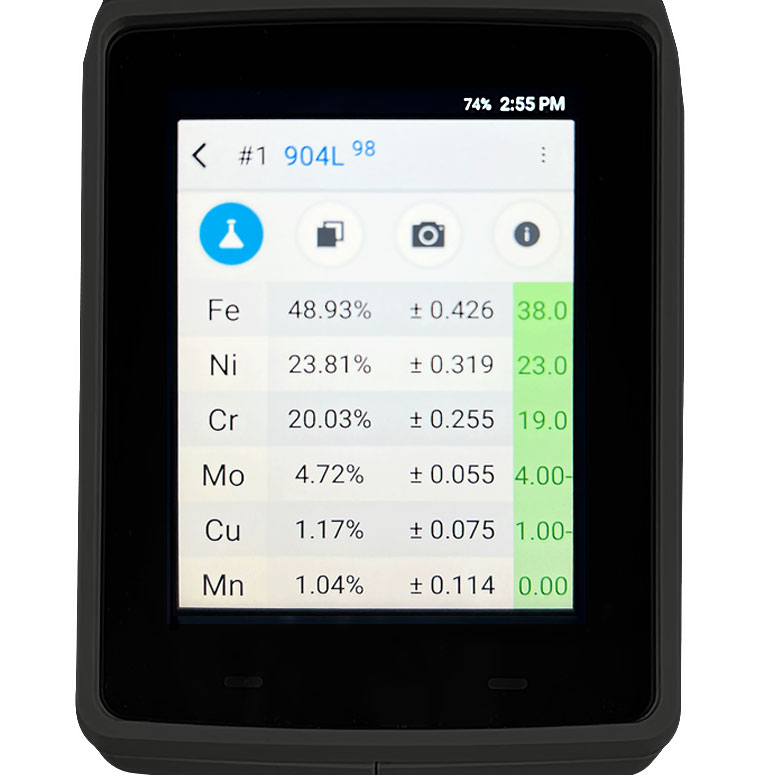

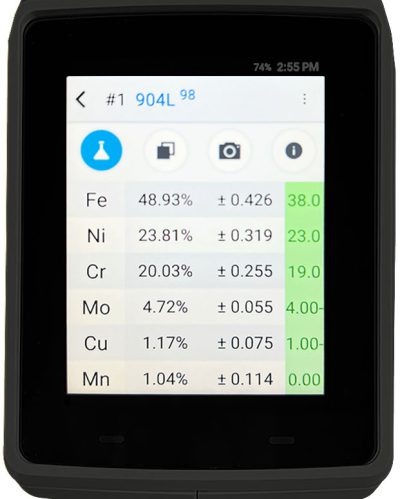

ROLEX 904L STAINLESS STEEL IDENTIFIER! This easily identifies the unique stainless steel that is used in ROLEX watch cases and bands. This software update also distinguishes 304 and 316 stainless steel.

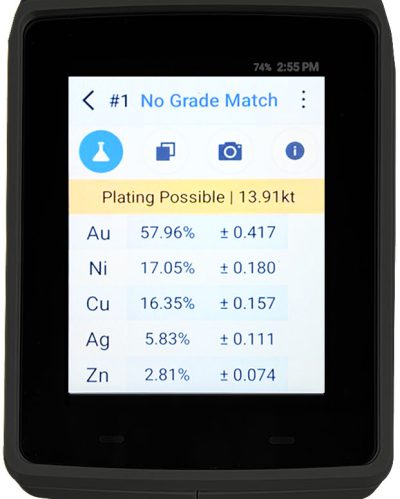

The GEMORO XRF PRO also offers a plating warning detection feature!
Finance your GEMORO XRF PRO Gold & Precious Metal Analyzer for as little as $410 per month!
*Rates shown are subject to credit approval and are for approved applicants
*Rates include interest
*Rates are based on 60 months
Please note – every state has specific requirements for owning an X-Ray emitting machine. You will need to register your XRF by going to the Department of Health’s website for your state.

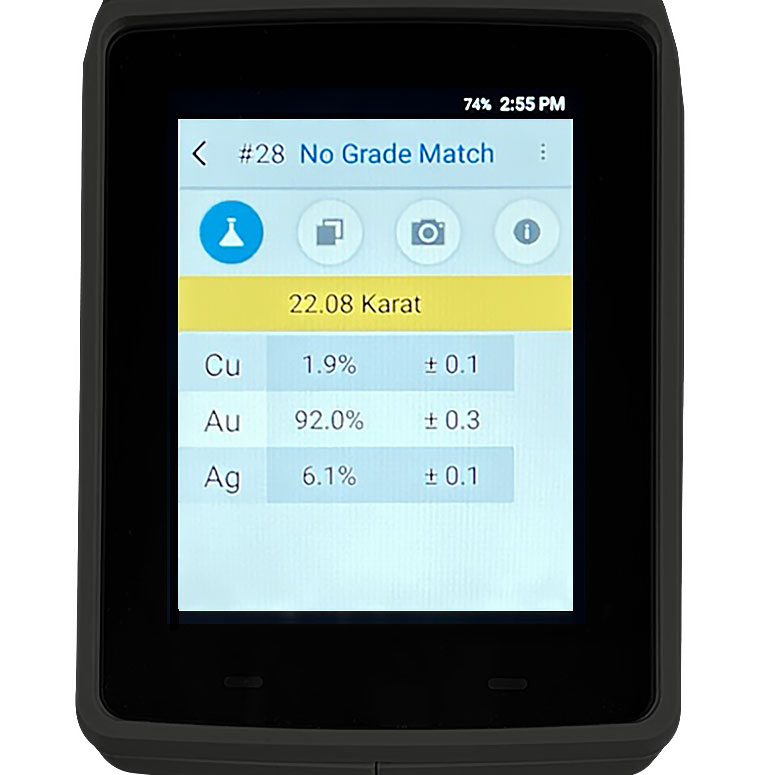

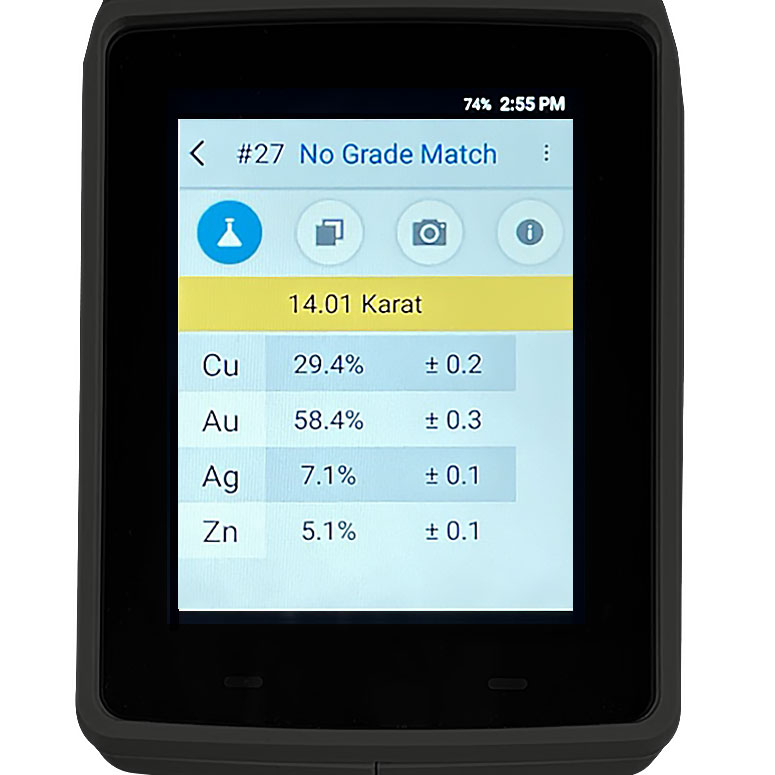

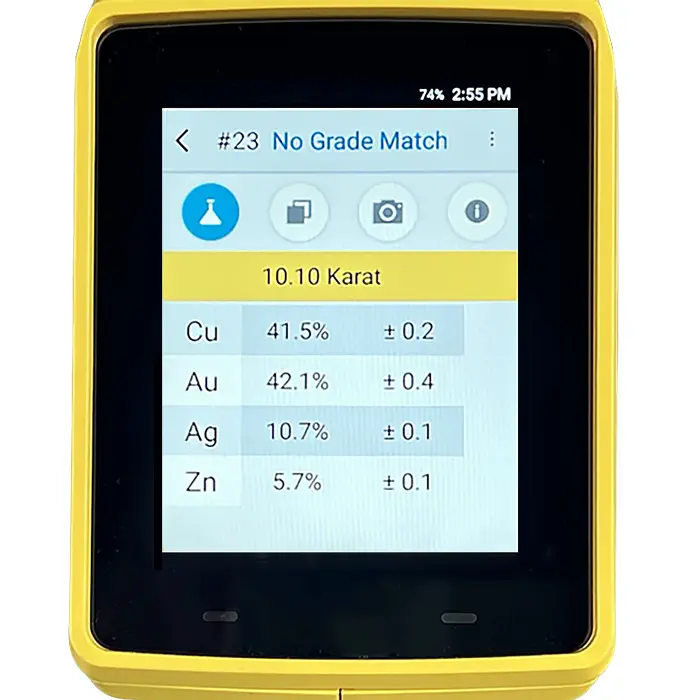

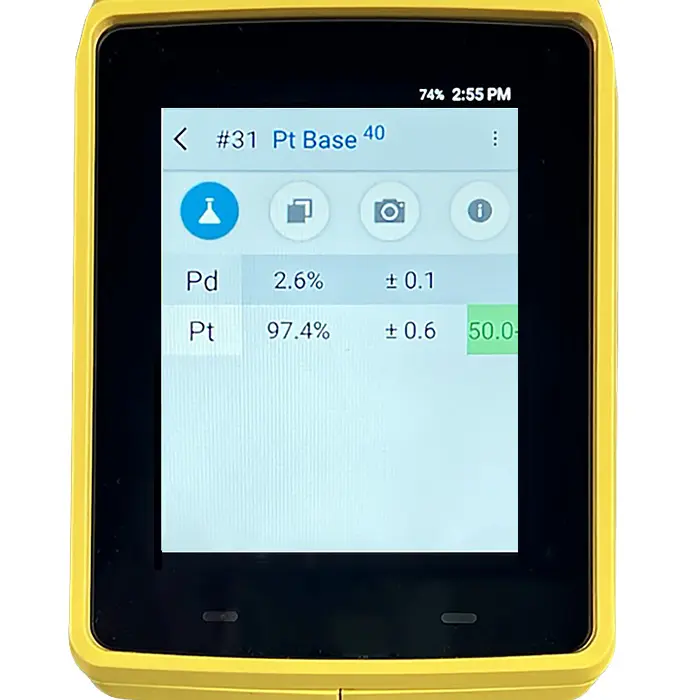

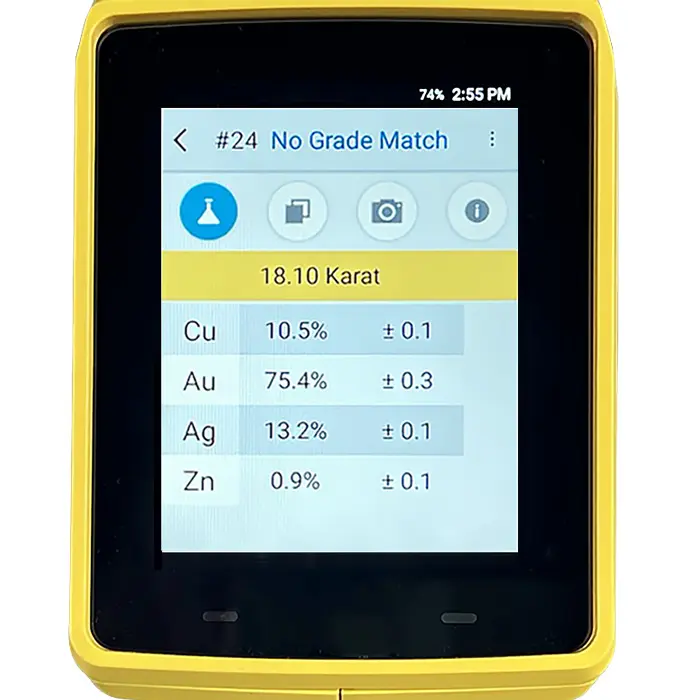

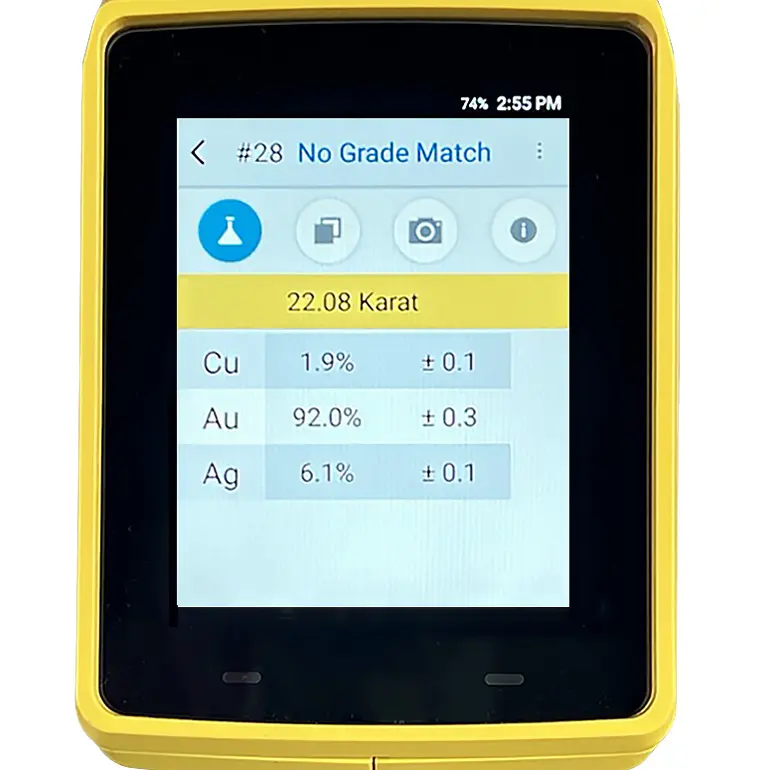

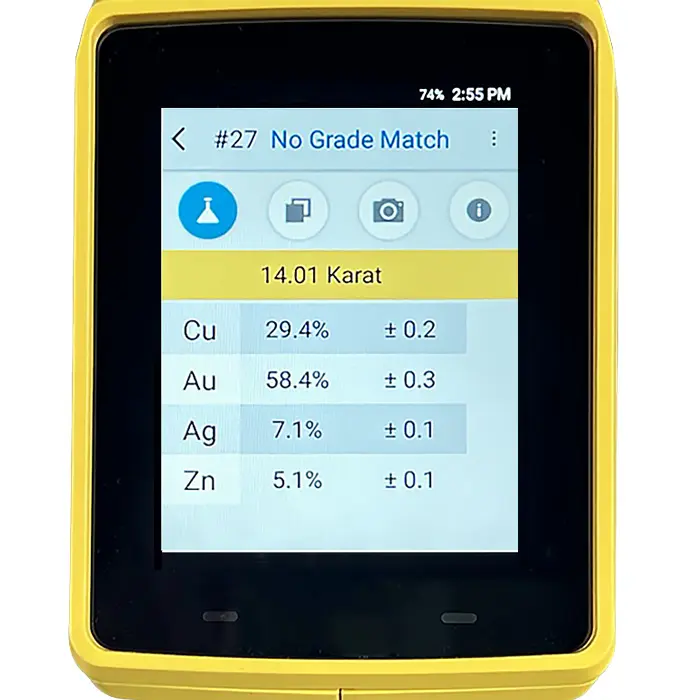

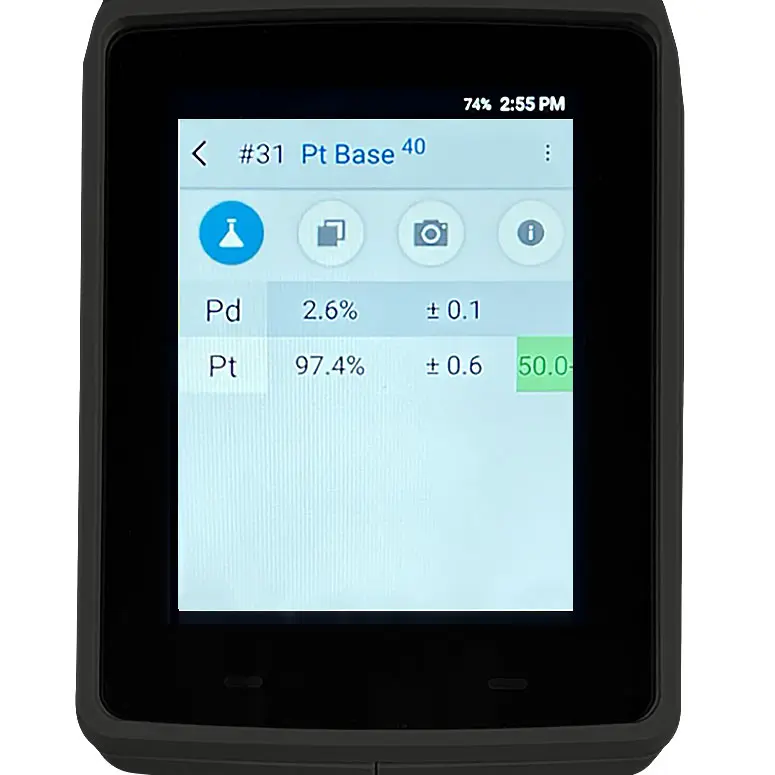

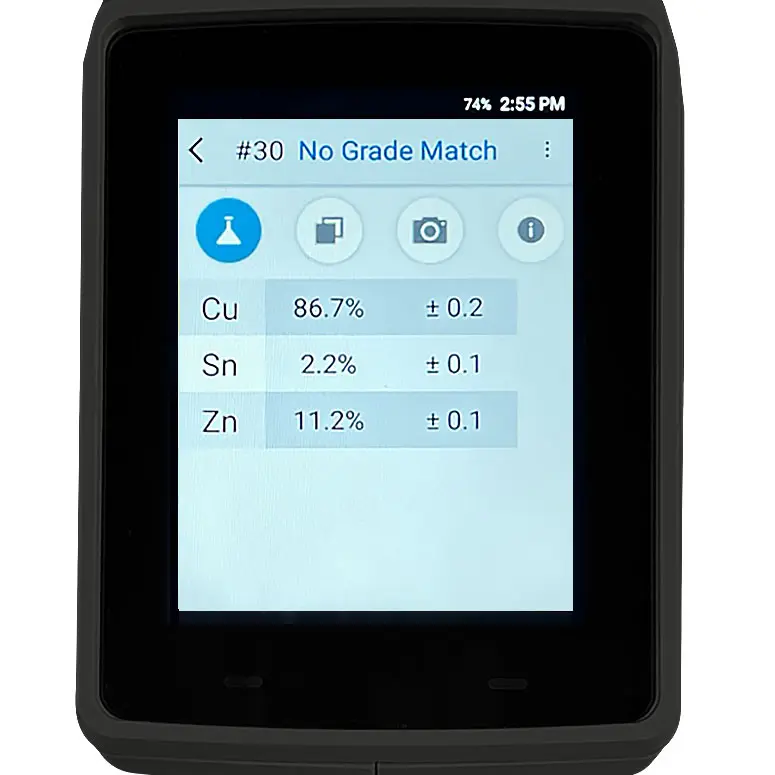

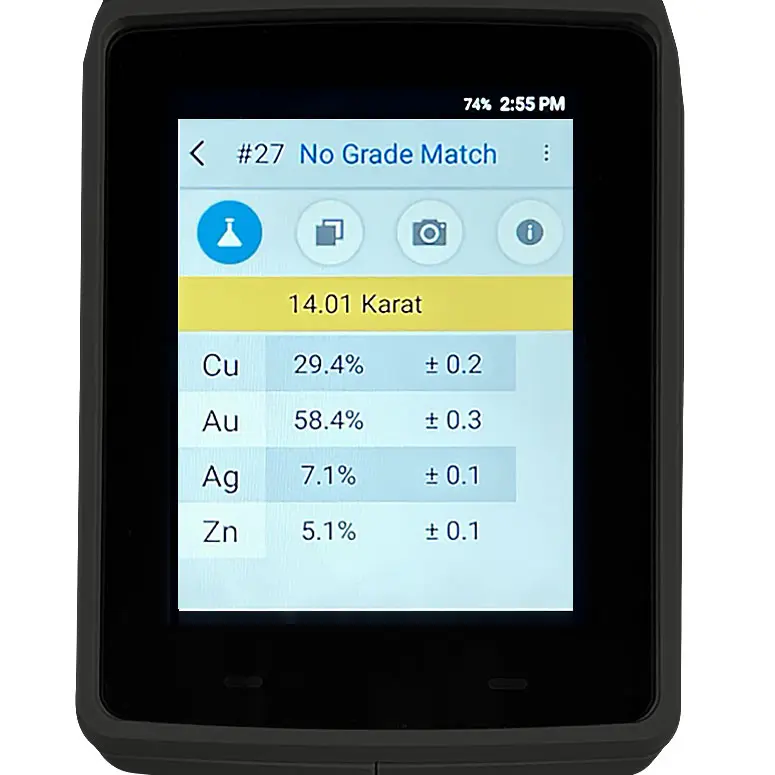

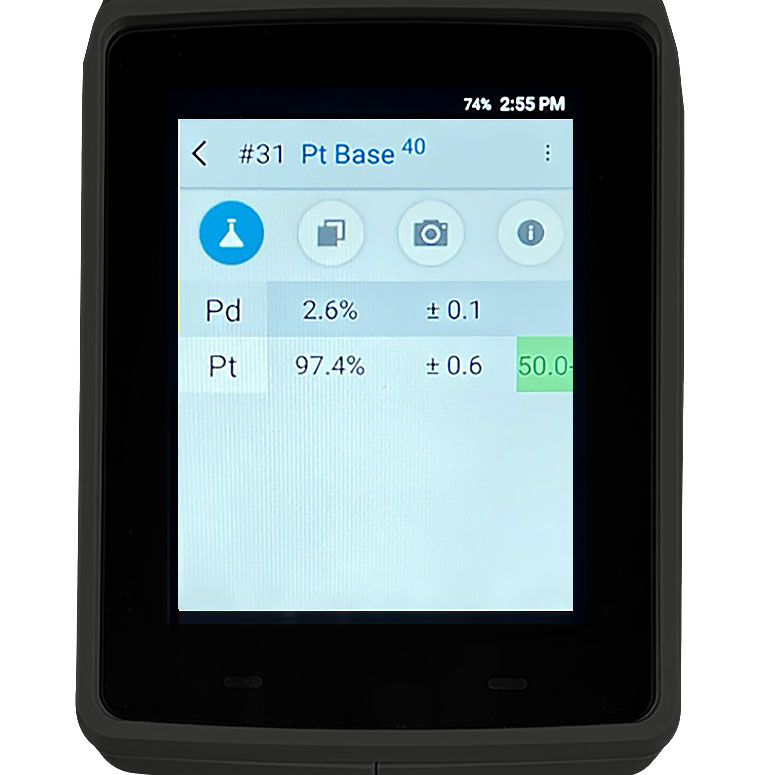

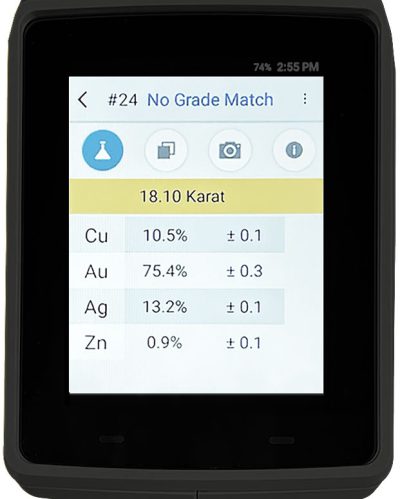

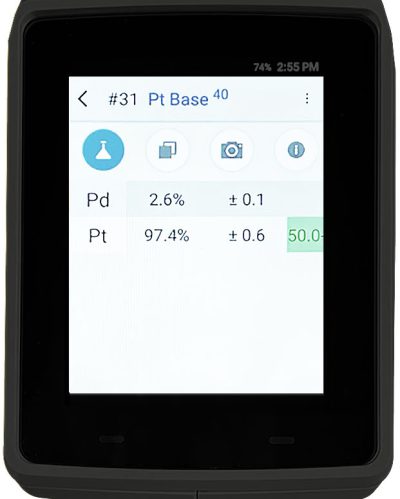

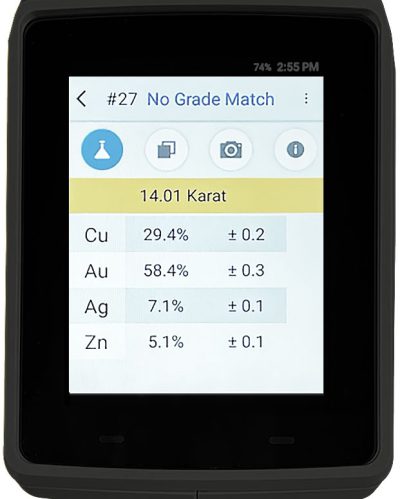

The GEMORO XRF PRO determines the percentage of each element, thoroughly measuring an area 4mm in diameter while reaching a robust depth of 10-20 microns. Five times the typical depth of gold plating which has a thickness of only 1-3 microns. This state-of-the-art instrument represents a high-tech alternative to a destructive fire assay.
Each unit includes two 6-hour long-lasting rechargeable batteries and an AC adapter. The ability to set a passcode access parameter to manage user access. WIFI/Bluetooth/USB connection capabilities allow you to quickly send sample images and test results to your computer for easy filing. This feature-rich unit comes with a protective Pelican Case to ensure it arrives in perfect condition and enables you to carry it into the field.
Range of Precious Metal Elements the GEMORO XRF PRO Gold & Precious Metal Analyzer can measure:
- Titanium (Ti)
- Vanadium (V)
- Chromium (Cr)
- Manganese (Mn)
- Iron (Fe)
- Cobalt (Co)
- Nickel (Ni)
- Copper (Cu)
- Zinc (Zn)
- Tungsten (W)
- Iridium (Ir)
- Platinum (Pt)
- Gold (Au)
- Lead (Pb)
- Bismuth (Bi)
- Zirconium (Zr)
- Molybdenum (Mo)
- Ruthenium (Ru)
- Rhodium (Rh)
- Palladium (Pd)
- Silver (Ag)
- Cadmium (Cd)
- Tin (Sn)
- Antimony (Sb)
Does not measure for Aluminum (Al), Magnesium (Mg), or Silicon (Si).
| SPECIFICATIONS | |
|---|---|
| Testing Area | 4mm Diameter |
| Measuring Depth | Up to 10-20 microns |
| Tube Life Expectancy | 8,000 Hours or 2.8M ~10 Second Tests |
| Tube Specification | 40K V, 200uA Rh Anode , 1 Beam |
| Detector Rate | 7 mm2 SDD, silicon drift detector (active area), 170 eV resolution FWHM at 5.95 Mn K-alpha line |
| Camera | Built-in, high-resolution camera for sample viewing and a macro-camera for photo-documentation or 2D/3D barcode reading and storage |
| Battery Life | Includes AC Adapter and 2 Rechargeable Batteries. 6 Hour Battery Life Per Battery |
| Certifications & Compliance | CE, RoHS, USFDA, Canada RED Act |
| Product Weight | 2.98 lbs. (1.35 kg) with Battery |
| Product Dimensions | 8.5 x 9.5 x 2.4 Inches |
| Computer Data Transfer | WIFI, Bluetooth, USB Connectivity to Most Devices |
| Calibration Check | Manually Applied 316 Stainless Steel Shutter – Included – is used for calibration when turning the device on and whenever the user desires, without having to physically send their device to GEMORO to be recalibrated |
| Environmental Temp. Range | 10°F to 130°F at 25% Duty Cycle |
| Security | Password-Protected Usage (user level) and Internal Settings (admin) |
| Warranty | 3-Year Warranty |
| Optional Accessories | Dock & Barrel & XRF Platform Available for Purchase |
| XRF PRO Manual | Download the XRF PRO Manual |
GEMORO XRF PRO
Dock & Barrel Conversion Kit
The ultimate docking station for the GEMORO XRF PRO Gold & Precious Metal Analyzer–ensuring no risk of energy exposure! Designed for effortless analysis of small pieces, this innovative and smart configuration provides the flexibility to convert your handheld GEMORO XRF PRO Gold & Precious Metal Analyzer into a bench-top model, while providing you with the highest degree of confidence that there will be no risk of energy exposure.
Enhance your XRF testing experience with the GEMORO XRF PRO Testing Platform — purpose-built for professionals who demand precision and ease. This carbon-neutral surface stabilizes jewelry and precious metal items during testing, reducing movement and ensuring more consistent readings.
Featuring four pre-cut cavities, the platform securely holds rings, bracelets, and small pieces in place. For larger items such as chains or necklaces, simply lay them anywhere on the flat surface. The platform also doubles as a safe resting base for your handheld XRF Analyzer when not in use, helping prevent accidental drops and equipment damage.
