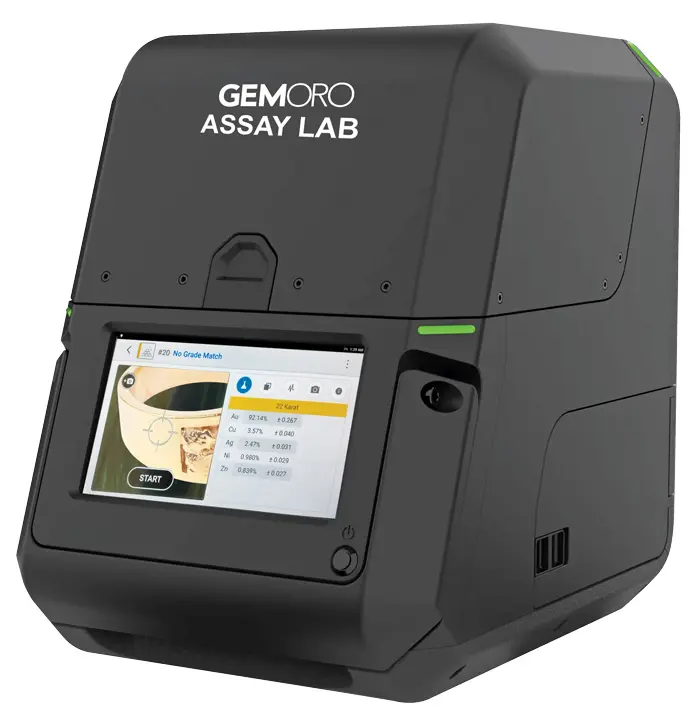

The NEW GEMORO ASSAY LAB is a portable desktop XRF Energy Dispersive Spectrometer precious metal analyzer, that is proudly made in the USA. It features a premium SDD detector, which is the most advanced and accurate type available. The compact, sleek, ergonomic design fits comfortably on a desk or counter and has a bright touchscreen, full color display.

The GEMORO ASSAY LAB is the perfect solution for analyzing precious metals and it’s ideal for jewelers, pawn shops, jewelry manufacturers, appraisers and precious metal scrap buyers.

Users can benefit from this fast and efficient, safe, non-destructive technology that produces surface test results that are comparable to a fire assay without destroying the jewelry. Quickly identify and measure each element in jewelry, coins, watches, and more.

• Super-fast, non-destructive & precise
• Intuitive interface
• Autonomous & PC operation

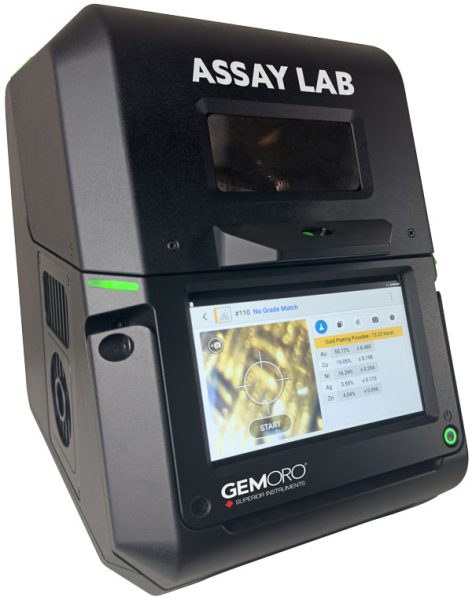

• Advanced plating detection
• Measures 25 different elements
• Compact, sleek & ergonomic design comfortably fits on a desk, bench or counter
• Large 7” touchscreen full color display
• Fully portable battery or AC powered
• Built-in handle for transporting
• Proudly designed and made in USA

STANDARD FEATURES

• Superior SDD detector
• World’s first portable 80kV XRF miniature X-ray tube
• Rechargeable twin Li-ion 6+ hour batteries
• Built-in Wi-Fi, Bluetooth and GPS

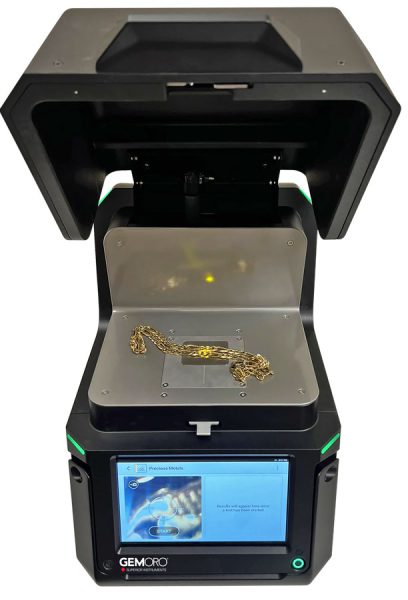

• Fully shielded lid with safety interlock protection
• Collimators
• Fully Cloud-enabled
• Two CCD cameras
• Imbedded computer

X-ray Fluorescence or XRF is a non-destructive, analytical method used to determine elemental concentrations of various materials on the surface of what is being analyzed. It’s important to recognize that not all XRF analyzers have the same capabilities.

Item #PMX-5676

List Price $26,995.95  Sale Price $21,999.00

Exclusive new advanced feature–ROLEX 904L STAINLESS STEEL IDENTIFIER! This easily identifies the unique stainless steel that is used in ROLEX watch cases and bands. This software update also distinguishes 304 and 316 stainless steel.

Finance your GEMORO XRF ASSAY LAB Gold & Precious Metal Analyzer today!

The GEMORO XRF ASSAY LAB determines the percentage of each element, thoroughly measuring an area 1.5mm in diameter while reaching a robust depth of 15-20 microns. Five times the typical depth of gold plating which has a thickness of only 1-3 microns. This state-of-the-art instrument represents a high-tech alternative to a destructive fire assay.

Each unit includes two 6-hour long-lasting rechargeable batteries and an AC adapter. The ability to set a passcode access parameter to manage user access. WIFI/Bluetooth/USB connection capabilities allow you to quickly send sample images and test results to your computer for easy filing. This feature-rich unit comes with a protective Pelican Case to ensure it arrives in perfect condition and enables you to carry it into the field.

Range of Precious Metal Elements the GEMORO XRF ASSAY LAB Gold & Precious Metal Analyzer can measure:

• Gold (Au)
• Silver (Ag)
• Lead (Pb)
• Nickel (Ni)
• Copper (Cu)
• Zinc (Zn)
• Iron (Fe)
• Tungsten (W)
• Tin (Sn)
• Rhodium (Rh)
• Tantalum (Ta)
• Titanium (Ti)
• Cadmium (Cd)
• Palladium (Pd)
• Platinum (Pt)

• Chromium (Cr)
• Manganese (Mn)
• Cobalt (Co)
• Gallium (Ga)
• Bismuth (Bi)
• Zirconium (Zr)
• Molybdenum (Mo)
• Ruthenium (Ru)
• Indium (In)
• Antimony (Sb)
• Vanadium (V)
• Selenium (Se)
• Yttrium (Y)
• Niobium (Nb)
• Hafnium (Hf)
• Rhenium (Re)

Does not measure for Aluminum (Al), Magnesium (Mg), or Silicon (Si).

XRF Spectrometry Data Method

XRF Spectrometry can use either Empirical Methods (calibration curves using standards similar in property to the unknown) or Fundamental Parameters (FP) to arrive at quantitative elemental analysis. The GEMORO XRF ASSAY LAB Gold & Precious Metal Analyzer uses the superior Fundamental Parameters because it allows elemental analysis to be performed without standards or calibration curves, which is much more preferred. This enables the analyst to use the system immediately, without having to spend additional time setting up individual calibration curves for the various elements and materials of interest. FP, accompanied by stored libraries of known materials, determines not only the elemental composition of an unknown material quickly and easily, but can identify unknown materials as well.

More on How XRF works:

XRF works by striking a sample with an X-ray beam from an X-ray tube, causing characteristic X-rays to fluoresce from each element in the sample. A detector measures the energy and intensity (number of X-rays per second at a specific energy) of each X-ray, which is transformed into an elemental concentration using either a non-standard technique such as fundamental parameters or user-generated calibration curves. The presence of an element is identified by the element’s characteristic X-ray emission wavelength or energy. The amount of an element present is quantified by measuring the intensity of that element’s characteristic X-ray emission.

The Atomic Level

All atoms have a mixed number of electrons. These electrons are arranged in orbitals around the nucleus. Energy Dispersive XRF (EDXRF) typically captures activity in the first three electron orbitals, the K, L, and M lines.

These electrons are arranged in orbitals around the nucleus. Energy Dispersive XRF (EDXRF) typically captures activity in the first three electron orbitals, the K, L, and M lines.

The primary photons from the X-ray tube have high enough energy that they knock electrons out of the innermost orbitals, creating a vacancy (1). An electron from an outer orbital will move into the newly vacant space at the inner orbital to regain stability within the atom (2).

As the electron from the outer orbital moves into the inner orbital, it releases energy in the form of a secondary X-ray photon. This energy release is known as fluorescence. All elements produce fluorescence “characteristic” to themselves. Each element’s fluorescence is unique to itself.

X-RAY

Sample Material

High-energy primary X-ray photons are emitted from an X-ray tube and strike the sample.

DETECTOR

Sample Material

The fluorescent energy is transferred to a detector, where it is absorbed and transferred into an electrical signal and then into a number (digitized).

While XRF analyzing technology is very precise, please recognize that this technology measures the elements present on the surface (AKA a “surface test”), and it should not be considered as a substitute for a fire assay of a core sample.
